OCROBOT MANGO II

OCROBOT MANGO II is a controller that corrects and updates the shortcomings of Arduino UNO. Industrial grade USB protection scheme, can work continuously for more than 72 hours; can choose whether to automatically reset and restart; comes with ISP downloader; 5V output load 2A

MCU:ATMEGA328P

FLASH：32KB

SRAM：2KB

EEPROM：1KB

Clock frequency：16MHz

Digital I / O port：14 (6 of which are PWM outputs)

Analog input：6 (2 of which are I2C bus interfaces)

USB power input：5V

DC power input：7-36V

PCB size: 68.58mmX53.34mm

• MCU Data Sheet： ATMEGA328P English version

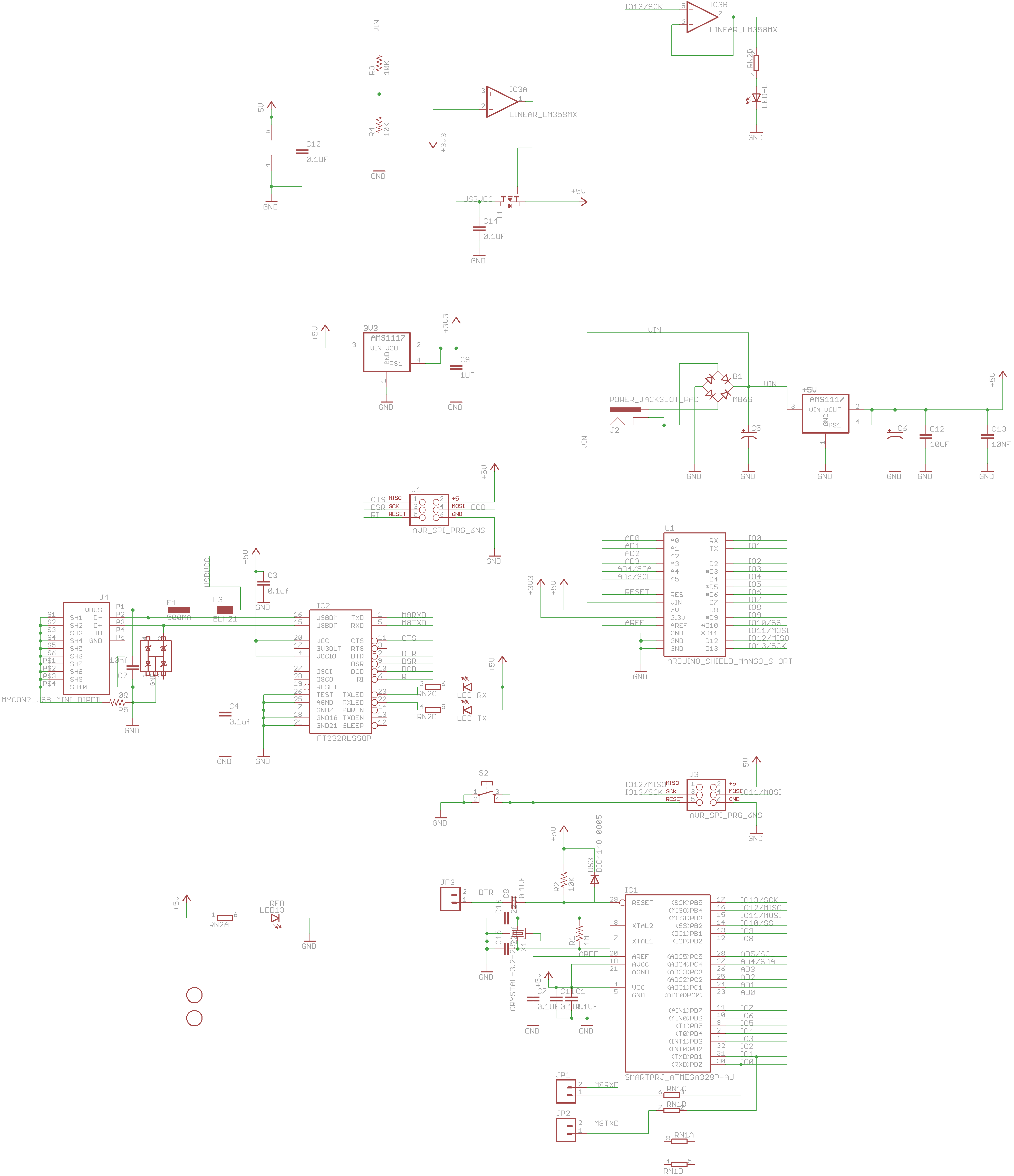

• Schematic：OCROBOT MANGO II
